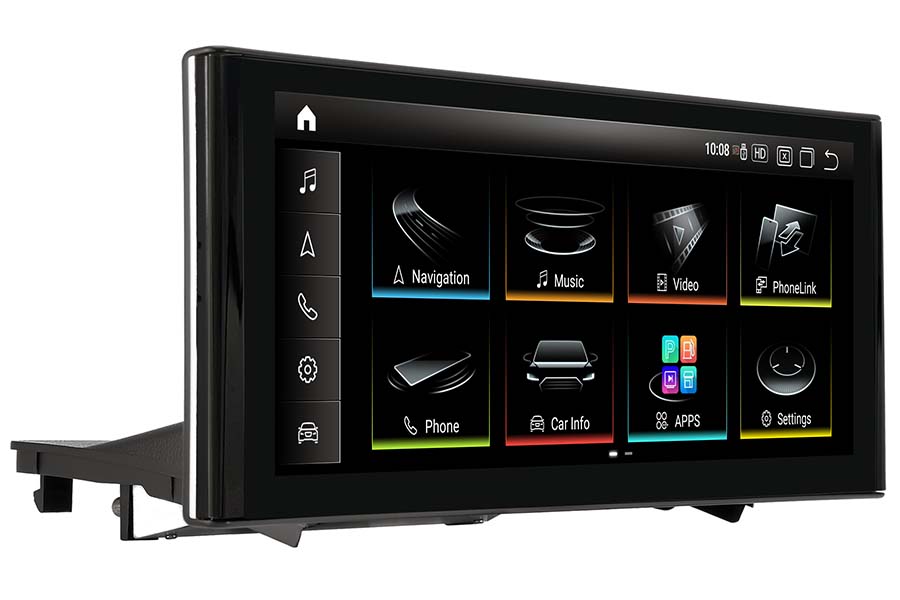

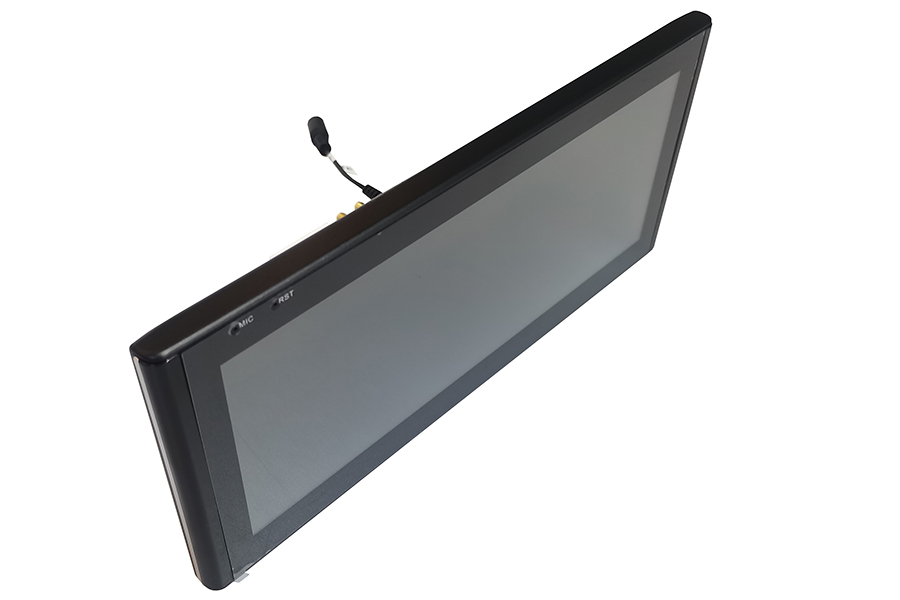

Introducing our latest aftermarket GPS navigation head unit, designed specifically to replace the factory LCD screen unit in the Audi A3(8V) from 2013-2020. With the same plug-and-play connector and wiring harness as the original radio, installation is quick and easy. This product replaces only the original Audi A3(8V) LCD screen unit while retaining the original factory FM/CD unit, so the factory Audi computer/CD/FM/AM/Sirius/XM will continue to function normally.
With the same wiring and connector as the original radio, installation is as simple as plug-and-play. Once installed, you'll have a smart entertainment system with touch screen/navigation/FM/AM/USB/Wi-Fi/AUX-IN/Bluetooth phone/Bluetooth music/DAB+ (tuner optional)/rearview camera (camera optional)/Apple CarPlay/Android Auto/TV (tuner optional)/OBD (device optional)/Google Play, and more. This product is compatible with the original steering wheel controls.
Upgrade your Audi A3(8V) with our GPS navigation head unit and enjoy a new level of entertainment and convenience while driving. Don't miss out on this opportunity to transform your driving experience.
Compatible vehicles:
Audi A3(8V) 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
Send a photo of the dashboard(radio system) to info@carnaviplayer.com if you are unsure about fitness.

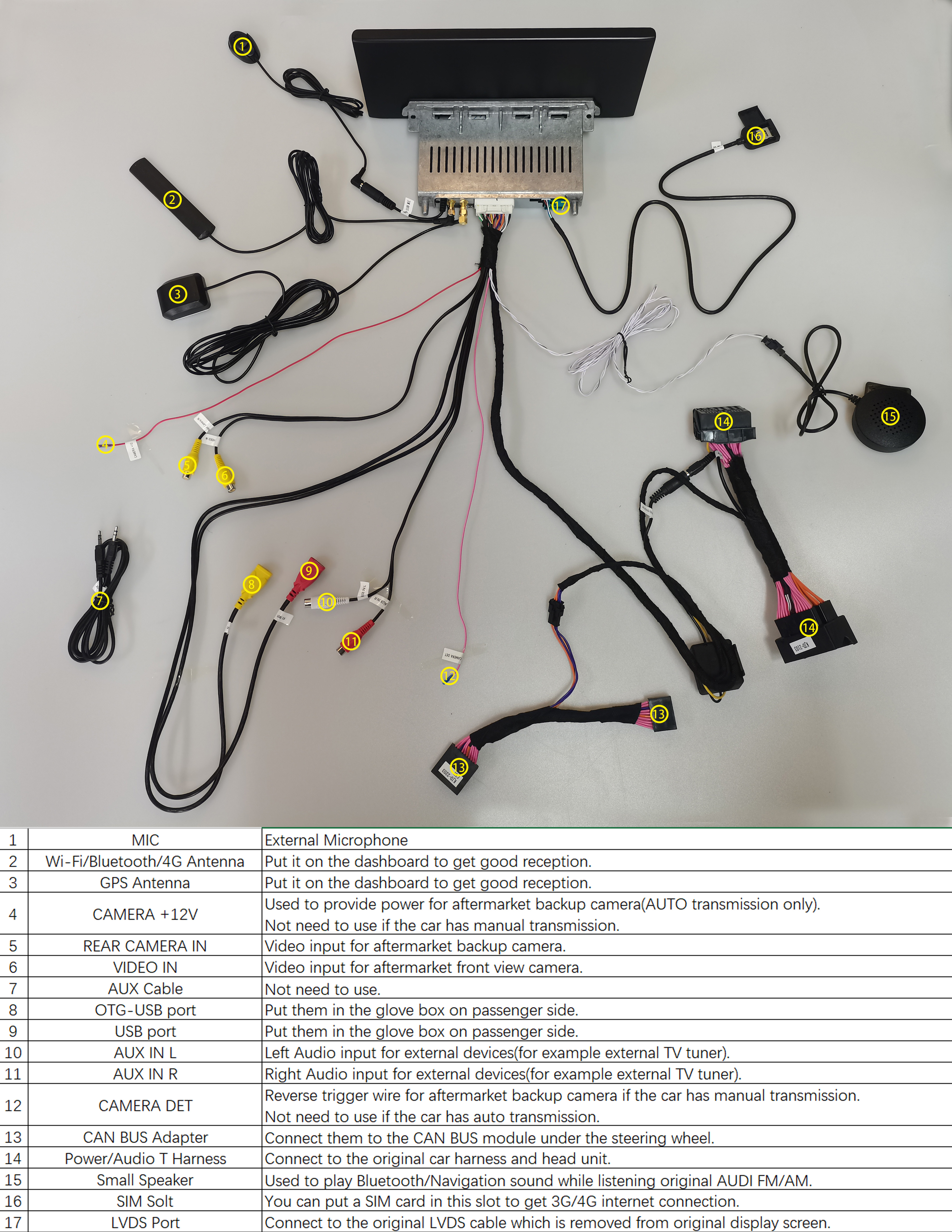

Installation instructions: https://www.carnaviplayer.com/docs/Installation_instructions/AD-1213.pdf
Installation Video: https://youtu.be/QgZUM4gBQXQ
1. Note the screen is fixed. It does not flip down as the original Audi A3/A6/A8 display screen.
2. Send a photo of the existing version information of the radio system to info@carnaviplayer.com if you are unsure about fitness so that we can verify the fitness. Here is a link FYI: https://www.carnaviplayer.com/-ezp-38
3. If your car has the AUX(External audio input) audio option, you don't need the AMI-AUX cord.
If your car has the AMI audio option(External audio input), you must use the Audi AMI-AUX adapter cord. After plugging this cord in, the AMI will change to AUX on the screen.
| CPU | 64-Bit 8-Core 2.0 GHz | |
| RAM | 4GB(8GB optional) | |
| Capacity | 64GB(128/256GB optional) | |

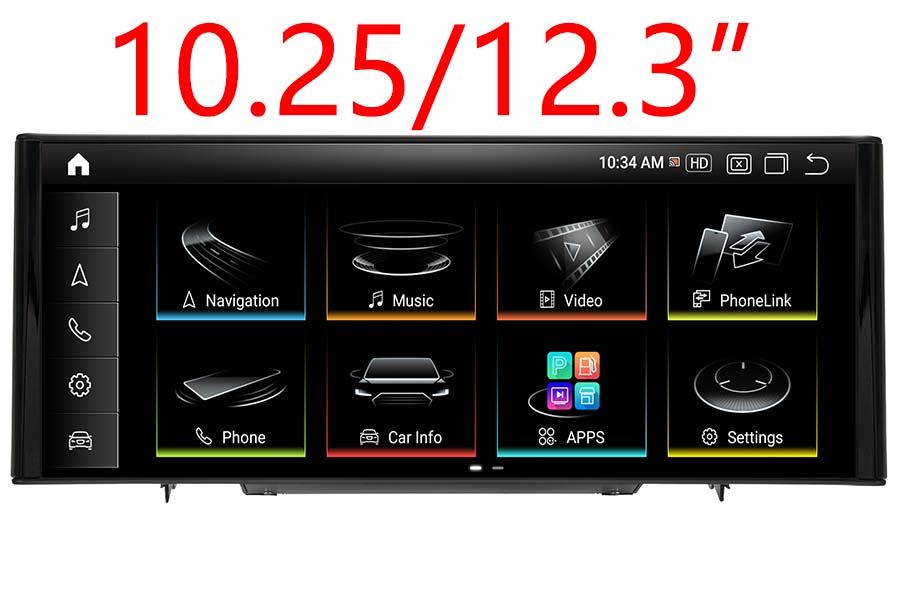

| Display | 10.25"(12.3" optional) 1920*720 Capacitive Touch Screen | |
| Network | Wi-Fi & 4G LTE | |
| USB port | Two USB ports | |
| Camera Input | One camera input(RCA port) | |
| Microphone | Internal and External | |
| GPS receiver | Built-in GPS module and external GPS antenna |
|
|
Navigation * Free maps preload and free updates |
 |
CD * Remain the factory AUDI CD player/CD changer |
|
 |
Radio * Remains the original AUDI AM/FM/Sirius/XM/DAB |
 |
Apple CarPlay * Support Apple Carplay with iPhone |
|
 |
Bluetooth * Hands-free phone call* Load the phone book from your mobile phone * Bluetooth music stream A2DP * External Microphone |
 |
Android Auto * Support Android Auto with Android phone |
|
 |
Backup Camera (aftermarket backup camera is optional) * Display reverse image automatically when put in the reverse |
 |
USB * USB music, video, photo, and ebook |
|
 |
TV(External TV tuner is optional) * Support ATSC |
 |
DVR(External Camera is optional) * support forward video recorder while driving |
|
 |
SWC * Remain the original Audi steering wheel control and command buttons |
 |
AUX * One channel A/V input for external device |
|
 |
Google Play * Android Market provides numerous app downloads,such as Skype/MSN/Youtube/Twitter/Facebook free download as much as you need |
 |
Network * Wi-Fi/4G LTE |
Is this product plug-and-play? Do I need to program or code my Audi? Do I need to buy an external GPS antenna? Can I still check the car info on the OEM screen?
Answer: Yes, it is plug-and-play. It has the same plugs and harness as the original Audi system. You do not need to program your car when installing. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Audi car info as before.
How do I switch the new upgrade system to the original Audi interface?
Answer: To switch to the original Audi car computer screen, please tap the "Car Info" icon on the home screen.
How do I switch the original Audi screen to the new upgrade system?
Answer: Please tap the screen.
Why does it show a black screen with no signal when tapping “Car Info” to switch back to the original Audi car computer screen?
Answer: Please check the CAR-LVDS port. Connect the original LVDS plug (removed from the original screen) to the CAR-LVDS port on the new screen.
Why is there no audio from the new upgrade system?
Answer:
1. Please press the MEDIA button on the radio panel and check the audio source options. Make sure the External Audio input(AUX) is activated.
Note that if your car has the AMI option instead of AUX, you need to plug the Audi AMI-AUX cord into the AMI port in the glove box on the passenger side. After plugging this cord, the AMI will change to AUX on the screen.
2. Then tap the screen to access the new upgrade system. You should be able to hear sound.
