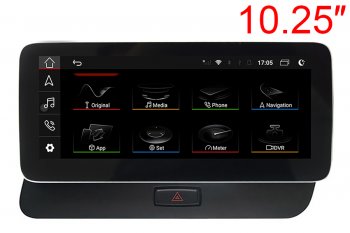

Introducing our latest aftermarket GPS navigation head unit, designed specifically to replace the factory LCD screen unit in the Audi Q5(8R) RHD from 2008-2017. With the same plug-and-play connector and wiring harness as the original radio, installation is quick and easy. This product replaces only the original Audi Q5(8R) RHD LCD screen unit while retaining the original factory FM/CD unit, so the factory Audi computer/CD/FM/AM/Sirius/XM will continue to function normally.

With the same wiring and connector as the original radio, installation is as simple as plug-and-play. Once installed, you'll have a smart entertainment system with touch screen/navigation/FM/AM/USB/Wi-Fi/AUX-IN/Bluetooth phone/Bluetooth music/DAB+ (tuner optional)/rearview camera (camera optional)/Apple CarPlay/Android Auto/TV (tuner optional)/OBD (device optional)/Google Play, and more.

Upgrade your Audi Q5(8R) with our GPS navigation head unit and enjoy a new level of entertainment and convenience while driving. Don't miss out on this opportunity to transform your driving experience.

Compatible Vehicles:

Audi Q5 right hand driver(Type 8R: 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017)

Send a photo of the dashboard(radio system) to info@carnaviplayer.com if you are unsure about fitness.

Installation video: https://1drv.ms/v/s!AuJeF6cw4ExXqoxTXSXXFEroLrUmmA?e=tbSyaO

Before placing the order, you need to know the following items about your car:
1. What is the current radio system on my car?

2. If your car has an MMI system, you can use the original joystick and touchscreen to operate the new Android screen.
You can still use the original joystick to operate the original Audi screen. The touchscreen does not operate the original Audi screen.

3. Please press the MEDIA button on the radio panel and check the audio source options.
If your car has the AUX(External audio input), you don't need the AMI-AUX cord.
If your car has the AMI, you need the Audi AMI-AUX adapter cord. Please add it from the add-ons box when placing the order. Otherwise, there will be no audio after installing our product.

Factory radio system

Installation Photo

	Navigation     * Free maps preload and free updates     * Stunning 3D visualization     * Text-to-speech direction     * Support Google maps, Waze, Sygic, etc.			CD      * Remain the factory AUDI CD player
	Radio   * Remains original AUDI AM/FM/Sirius/XM tuner   * Support DAB+ radio(tuner is optional)			Apple CarPlay     * Support Apple Carplay with iPhone
	Bluetooth     * Hands-free phone call     * Load the phone book from your mobile phone     * Bluetooth music stream A2DP     * External Microphone     * Compatible with iPhone & Android mobile phones			Android Auto     * Support Android Auto with Android phone
	Backup Camera (Camera is optional)     * Display reverse image automatically       once put in the reverse     * Sony CCD camera with night vision     * Remain the factory AUDI backup camera			SD/USB     * SD card/USB music, video, photo, and ebook     * Charge phone via USB port
	TV(TV tuner is optional)     * Support ATSC     * Support DVB-T/DVB-T2     * Support ISDB-T			DVR(Camera is optional)     * support forward video recorder while driving     * Operate via touchscreen     * Plug & Play
	SWC     * Remain original steering wheel control			AUX     * One channel A/V input for external device
	Google Play     * Android Market provides numerous apps download,       such as Skype/MSN/Youtube/Twitter/Facebook       free download as much as you need			Network     * Wi-Fi/4G

Product demo video: https://www.youtube.com/watch?v=M83AWZLVKwI
User Manual: http://www.carnaviplayer.com/docs/user_manual/Audi/User_Manual.pdf
Head unit Installation Guide: http://www.carnaviplayer.com/docs/Installation_instructions/8665.pdf
Connection map: http://www.carnaviplayer.com/docs/Installation_instructions/8665_connection_map.pdf
Backup camera Wiring diagram: http://www.carnaviplayer.com/docs/Installation_instructions/Audi-Backup-camera-wiring-diagram.pdf

Is this product plug-and-play? Do I need to program or code my Audi? Do I need to buy an external GPS antenna? Can I still check the car info as the OEM screen?
Answer: Yes, it is totally plug-and-play. It has the same plugs and harness as the original Audi system. You do not need to program your car when installation. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Audi car info as before.

How do I switch the new upgrade system to the original Audi interface?
Answer: Please tap the “Original” icon on the home screen to switch to the original Audi interface.

How do I switch the original Audi interface to the new upgrade system?
Answer: Please tap the screen.

Why does it show a black screen with no signal when tapping “Original” to switch back to the original Audi interface?
Answer: Please check the CAR-LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.

Why is there no audio from the new upgrade system?

Answer:
1. Please press the MEDIA button on the radio panel and check the audio source options. Make sure the External Audio input(AUX) is activated.

Note if your car has the AMI option instead of AUX, then you need to plug the Audi AMI-AUX cord(this cord is sold separately) into the AMI port in the glove box on the passenger side. After plugging this cord, the AMI will change to AUX on the screen.

2. Then tap the screen to access the new upgrade system. You should be able to hear sound.

Where should I mount the main metal box? The original LVDS cord is too short to mount it in the glove box?

Please take apart the glove box on the passenger side and there is a hole allows you to put the metal box hide behind the screen. Then the LVDS cord is long enough.

Why does it not power off when I shut down the car?
Answer: Please ensure the CANBUS connector is connected behind the climate control panel, as shown below.
