BMW 1 Series(F20/F21)/2 Series(F22/F23) Radio Upgrade
  • Model: 8211

Price:   Starting at: $599  $409
Save: 32% off

Please Choose:

















Add to Cart:

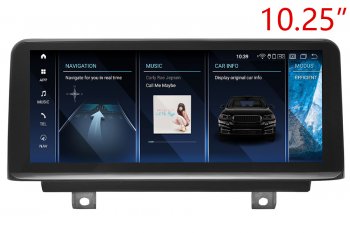

BMW aftermarket navigation system has a 10.25 inch touchscreen, it is specially designed to replace stock radio system on BMW 1 Series(F20/F21/F52)/2 Series (F22/F23), totally plug and play, no need to cut wires, free gps navigation map preloaded for your country. Supports the original car information.


FOR
BMW 1 Series 5-door hatchback (F20) 2011, 2012, 2013, 2014, 2015, 2016
BMW 1 Series 3-door hatchback (F21) 2011, 2012, 2013, 2014, 2015, 2016
BMW 2 Series Coupe and Cabrio (F22) 2014, 2015, 2016, 2017
BMW 2 Series Convertibles (F23) 2014, 2015, 2016, 2017


Note above year range is for your reference only. Send a photo of the dashboard(radio system) to info@carnaviplayer.com if you are not sure about fitness.

Attention:
1. This product fits for BMW 1 Series(F20/F21)/2 Series (F22/F23) with original 6.5 inch, 8 inch or 10 inch screen. It if your car is BMW 2 Series Active Tourer(F45) and Gran Tourer(F46), please buy another product.
2. If your car equips with EVO system and non-touchscreen, then you can install our product. But if it is EVO system with touchscreen, please DO NOT buy, it is not compatible with your car.


Original radio system FYI

bmw f20 navigation player


Installation photos

BMW 1 Series(F20/F21)/2 Series Cabrio(F23) Radio upgrade

BMW 1 Series(F20/F21)/2 Series Cabrio(F23) Radio upgrade


User Manual: http://www.carnaviplayer.com/docs/user_manual/BMW/User_Manual.pdf
Wiring diagram: http://www.carnaviplayer.com/docs/Installation_instructions/BMW_Wiring_Diagram.pdf
Installation video: https://www.youtube.com/watch?v=xfDvINqGcQM
Installation Guide: http://www.carnaviplayer.com/docs/Installation_instructions/8830.pdf
Operation video: https://www.youtube.com/watch?v=ZyHxMcXZ__Y
Backup camera video: https://www.youtube.com/watch?v=GjXbTAxazYs


Operating system           Android
Display   10.25-inch, resolutions 1280 by 480(1920 by 720 optional)
Processor   1.8 GHz 6-core 28nm Rockchip RK3399(optional 2.0 GHz 8-core 14nm Qualcomm Snapdragon 625 MSM8953)
Memory   4GB
Storage   32GB(64GB optional)
SD/TF card   One 3.0 card slot(Max 128GB)
USB port   USB 3.0 ports(Max 64GB)
Video play   MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc.
Video input   One video input(RCA port)(optional)
Camera input   One camera video input(RCA port)
Microphone    Internal & External Microphone(optional)
Bluetooth   Bluetooth 5.0 module
Network   Wi-Fi
Audio IC   RK616(Built in Core module)
GPS receiver    External GPS antenna(include)

s100 navigation function

   Navigation

    * Free maps preload and free updates
    * Stunning 3D visualization
    * Text-to speech direction
    * Support Google maps, Waze, Sygic etc.

               network for s100 navigation radio

   Network

    * Wi-Fi


radio with rds

   Radio

   * Remains original BMW AM/FM/Sirius/XM tuner

  apple carplay

   Apple CarPlay

    * Support Apple Carplay with iPhone

bluetooth phone call a2dp

   Bluetooth

    * Hands free phone call
    * Load phone book from you mobile phone
    * Bluetooth music stream A2DP
    * Internal & External Microphone(optional)
    * Compatible with iPhone & Android mobile phone
  mirror link

   Android Auto

    * Support Android Auto with Android phone

backup camera parking radar

   Backup Camera(camera is optional)

    * Display reverse image automatically
      once put in the reverse
    *Sony CCD camera with night vision

  sd usb music   play

   SD/USB

    * SD card/USB music, video, photo and ebook
    * Charge phone through USB port


car digital tv receiver

   TV(TV tuner is optional)

    * Support ATSC/DVB-T/DVB-T2/ISDB-T

  dvr   for s100 navigation radio

   DVR(camera is optional)

    * support forward video recoder while driving
    * Operate via touchscreen
    * USB port, Plug & Play


BMW ID7 style menu


Is this product plug and play? Do I need to program or code my BMW? Do I need to buy external GPS antenna? Can I still check the car info as the OEM screen?
Answer: Yes, it is totally plug and play, it has the same plugs and harness as original BMW system. You do not need to program your car when installation, totally plug and play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.


How do I switch the new Android system to the original BMW CCC/CIC/NBT/EVO interface?
Answer: Please tap “Car-info” icon on the home screen OR long press (3 seconds) MENU button on iDrive to switch to original CCC/CIC/NBT/EVO interface.


How do I switch the original BMW CCC/CIC/NBT/EVO interface to new Android system?
Answer: Please tap the screen or long press (3 seconds) MENU button on iDrive.


Why it shows “No signal” when tap “Car-info” or switch back to original BMW interface?

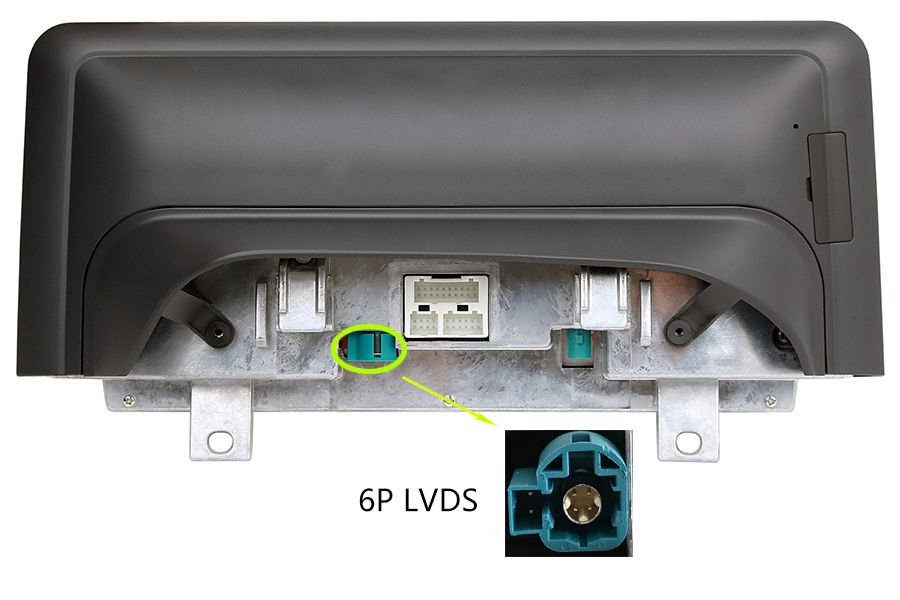

Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.

BMW LVDS CONNECTOR

Different systems have different LVDS plugs.

BMW LVDS CONNECTOR


Why there is no audio from new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged in the AUX-IN port on your car.

BMW_AUX-IN_PORT
B. And also you need to activate AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.

BMW_AUX-IN_PORT


Why does the Sirius/XM radio, original car computer info and factory camera does not display? Why does the AUX-IN volume stucks on zero and not adjustable?
Answer: Please check the fiber optics plug, you need to move it from the original connector to new connector we provided.

fiber optics CONNECTOR


My car has factory backup camera, why it does not display when reverse the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
