Introducing our latest aftermarket GPS navigation head unit, designed specifically to replace the factory LCD screen unit in the BMW X1(E84) from 2009-2015. With the same plug-and-play connector and wiring harness as the original radio, installation is quick and easy. This product replaces only the original BMW X1(E84) LCD screen unit while retaining the original factory FM/CD unit, so the factory BMW computer/CD/FM/AM/Sirius/XM will continue to function normally.
With the same wiring and connector as the original radio, installation is as simple as plug-and-play. Once installed, you'll have a smart entertainment system with touch screen/navigation/FM/AM/USB/Wi-Fi/AUX-IN/Bluetooth phone/Bluetooth music/DAB+ (tuner optional)/rear-view camera (camera optional)/Apple CarPlay/Android Auto/TV (tuner optional)/OBD (device optional)/Google Play, and more.
Upgrade your BMW X1(E84) with our GPS navigation head unit and enjoy a new level of entertainment and convenience while driving. Don't miss out on this opportunity to transform your driving experience.
Compatible Vehicles:
BMW X1(E84) 2009 2010 2011 2012 2013 2014 2015
Note above year range is for your reference only. Send a photo of the dashboard(radio system) to info@carnaviplayer.com if you are unsure about fitness.
Attention:
1. This product fits for BMW E84 with a storage box, original 6.5-inch screen, or 8.8-inch screen.
2. If your car has the OEM screen with an iDrive controller. Then you can still operate the new system through the existing iDrive controller.

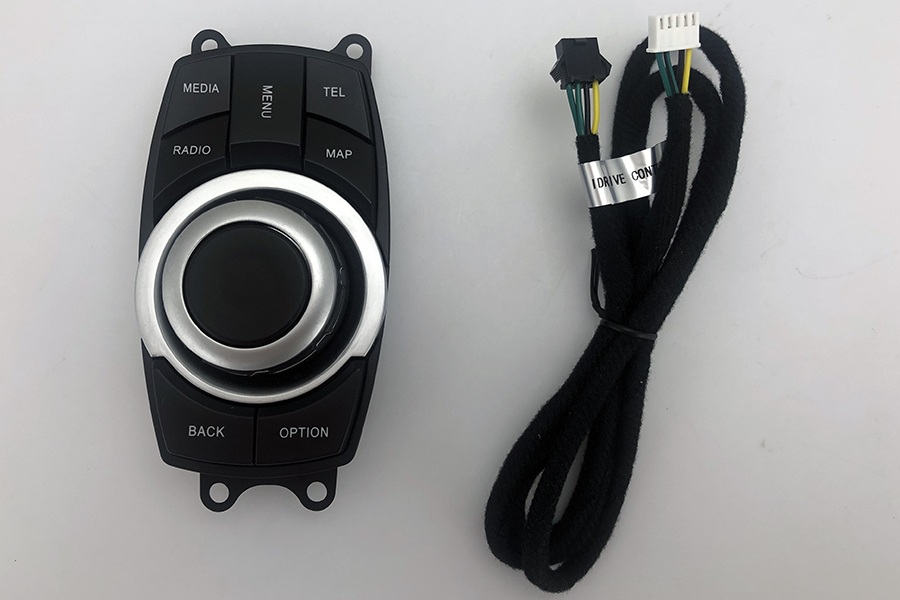

3. If your car has a storage box without the iDrive system on the dashboard. Then you can install our iDrive controller.
Original radio system FYI
Installation photos
User Manual: http://www.carnaviplayer.com/docs/user_manual/BMW/User_Manual.pdf
Installation video:
https://youtu.be/RVUPB6hWmXg
https://youtu.be/j0ymba1lxs8

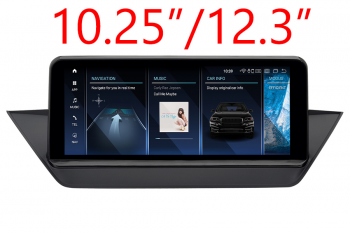

| Display | 10.25-inch(optional 12.3-inch), resolutions 1920 by 720 | ||
| Processor | Qualcomm Snapdragon 8-core 2.0GHz | ||
| Memory | 4GB(8GB optional) | ||
| Storage | 64GB(128GB/256GB optional) | ||
| USB port | USB ports(Max 64GB) | ||
| Video play | MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc. | ||
| Video input | One video input(RCA port)(optional) | ||
| Camera input | One camera video input(RCA port) | ||
| Microphone | Internal & External Microphone(optional) | ||
| Bluetooth | Bluetooth 5.0 module | ||
| Network | Wi-Fi/3G(4G) Lte | ||
| Audio IC | RK616(Built-in Core module) | ||
| GPS receiver | External GPS antenna(include) |
|
|
Navigation * Free maps preload and free updates |
 |
Network * Wi-Fi/3G(4G) Lte |
|
 |
Radio * Remains original BMW AM/FM/Sirius/XM tuner |
 |
Apple CarPlay(optional) * Support Apple Carplay with iPhone |
|
 |
Bluetooth * Hands-free phone call* Load the phone book from your mobile phone * Bluetooth music stream A2DP * Internal & External Microphone(optional) * Compatible with iPhone & Android mobile phones |
 |
Android Auto(optional) * Support Android Auto with Android phones |
|
 |
Backup Camera (Camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo, and ebook |
|
 |
TV(TV tuner is optional) * Support ATSC/DVB-T/DVB-T2/ISDB-T |
 |
DVR(Camera is optional) * support forward video recorder while driving |
Is this product plug-and-play? Do I need to program or code my BMW? Do I need to buy an external GPS antenna? Can I still check the car info on the OEM screen?
Answer: Yes, it is totally plug-and-play. It has the same plugs and harness as the original BMW system. You do not need to program your car when installing, plug-and-play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.
How do I switch the new Android system to the original BMW CIC interface?
Answer: Please tap the "Car-info" icon on the home screen OR hold(3 seconds) the MENU button on iDrive to switch to the original CIC interface.
How do I switch the original BMW CIC interface to the new Android system?
Answer: Please tap the screen or hold(3 seconds) the MENU button on iDrive.
Why does it show "No signal" when tapping "Car-info" or switching back to the original BMW interface?
Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.
Different systems have different LVDS plugs.
Why is there no audio from the new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged into the AUX-IN port on your car.
B. And also, you need to activate the AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.
Why do the Sirius/XM radio, original car computer info, and factory camera not display? Why does the AUX-IN volume stuck on zero and not adjustable?
Answer: Please check the fiber optics plug. You need to move it from the original connector to the new connector we provided.
My car has a factory backup camera. Why does it not display when reversing the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
