Mercedes-Benz CLK(C209/W209) Aftermarket Radio Upgrade
  • Model: 8812

Price:   Starting at: $499  $469
Save: 6% off

Please Choose:















Add to Cart:

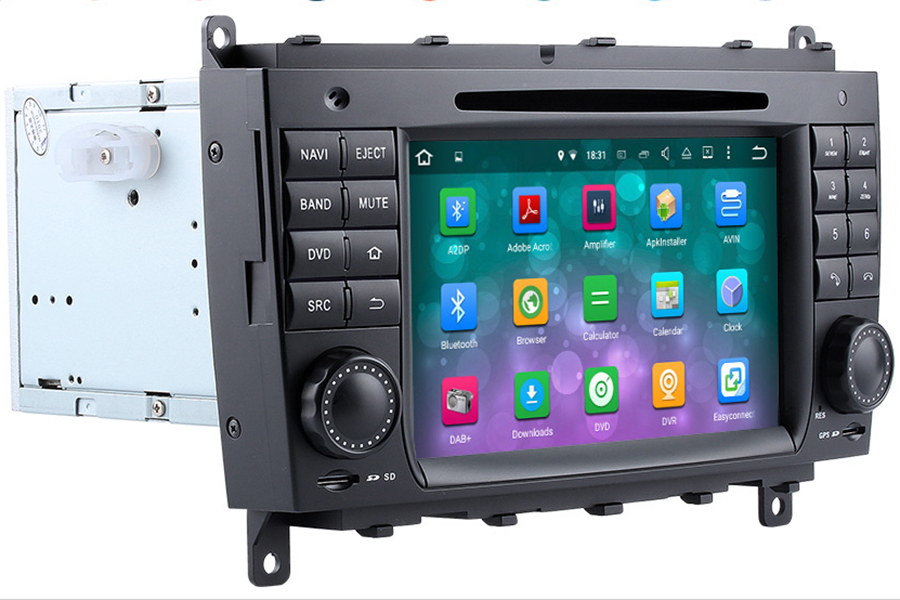

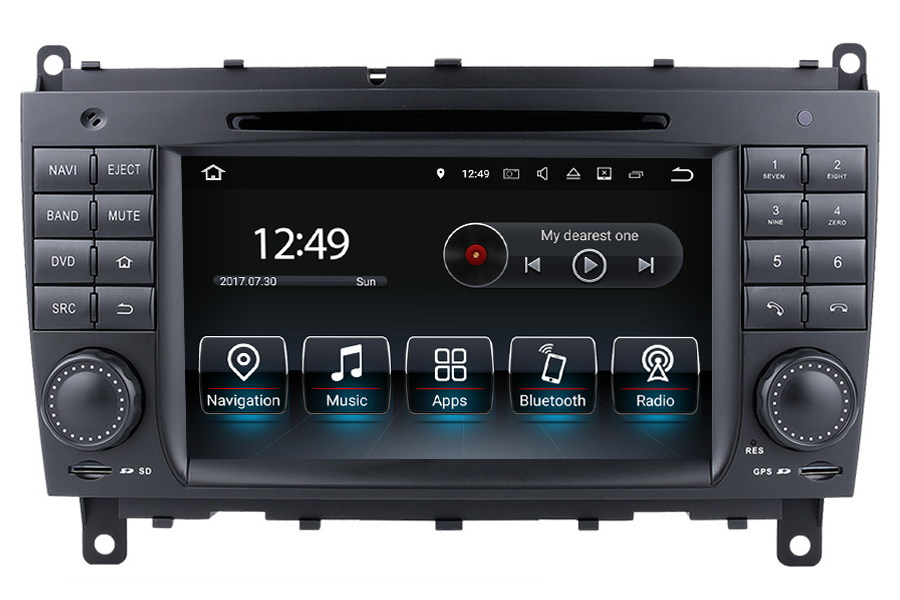

This aftermarket Navigation DVD Player is specially designed to upgrade Mercedes-Benz CLK-Class(C209/W209) OEM basic radio system or OEM navigation head unit. It has the same harness and plug as original radio, plug and play when install. After install this new unit, you will get an intelligent entertainment system with Touchscreen/Navigation/FM/AM/USB/SD/WiFi/AUX-IN/Bluetooth phone call/Bluetooth music/DVD playback/DAB+(tuner is optional)/rear view camera(camera is optional)/Apple CarPlay(optional)/Android Auto(optional)/TV(TV tuner is optional)/OBD(device is optional)/Google Play etc.


Fit for
Mercedes-Benz CLK-Class 200/240/280/320/350/500/550/55 AMG/63 AMG/63 AMG Black Series/DTM AMG(C209/W209) (Year 2005 2006 2007 2008 2009)

NOTE:
1. This product supports the OEM factory backup camera, please choose "My car has factory backup camera" if your car equips with factory backup camera, we will include the adapter.
2. This product does not work with the OEM 6 CD changer, but our product supports DVD disc playback and SD/USB music/video, you do not need the old 6 CD changer any more.
3. This product does not have Sirius/XM radio feature, you will loose the Sirius/XM.

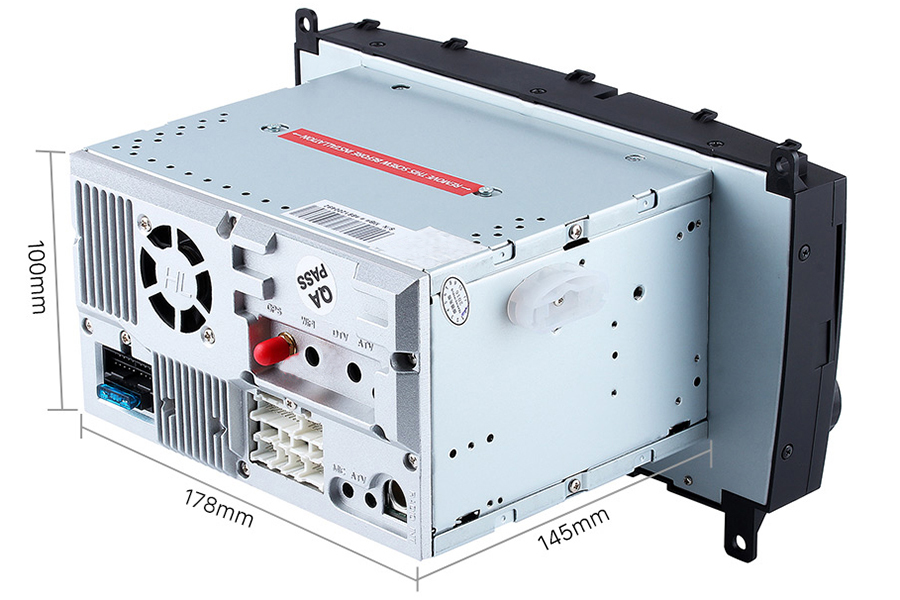

4. Mercedes-Benz CLK/CLS has two similar head units, but the size are not the same.Please measure the dimensions of original radio as shown below, this product is only suitable with the one with 253mm*238mm*120.15mm.

Mercedes-Benz CLK radio dimension


Mercedes-Benz CLK/CLS-Class(C209/W209) radio system

NOTE If you have the NTG1 Audio 20 APS/NTG 2 Command APS/NTG2.5 Comand APS/NTG2.5 Audio 20/50 APS/MCS-II as shown in above photo WITHOUT external Harmon/Kardon fiber optic audio system in your Mercedes-Benz then this aftermarket head unit will be a direct plug-and-play replacement using the short wiring adapter lead provided.



If you have the NTG1 Audio 20 APS/NTG 2 Command APS/NTG2.5 Comand APS/NTG2.5 Audio 20/50 APS/MCS-II as shown in above photo WITH external Harmon/Kardon fiber optic audio system in your Mercedes-Benz then this aftermarket head unit will be a direct plug-and-play replacement using the short wiring adapter lead provided. But you also need the Fiber Optic(MOST) adapter for Mercedes-Benz. The adapter is optional, please add it from the drop-box. It remains the original Harmon/Kardon audio system, ALL car speakers work as before. Check more info about the  Fiber Optic(MOST) adapter for Mercedes-Benz.


Please send a photo of the existing dashboard(radio system) and VIN of your car to info@carnaviplayer.com if you are not sure if you need the Fiber optic MOST adapter or not. We will check if you need or not.

Installation videos:
https://youtu.be/wBlr1zex1mo
https://youtu.be/ftGZU3MAKOU


Operating system   Android
CPU   64-Bit 8-Core Cortex-A53 1.5GHz
RAM   4GB
Capacity   64GB
Display   7" 1024*600 Capacitive Touch Screen
Network   Wi-Fi
SD card   Two micro sd card slots
USB port   Two USB ports
Amplifier   Built-in 4*45W sound amplifier
Audio Output   Front left, Front right, Rear left, Rear right and Subwoofer(RCA port)
Video Output        One video output(RCA port)
Audio/Video Input   Left/Right audio and video input(RCA port)
Camera Input   One camera input(RCA port)
Microphone    Internal
GPS receiver    Built-in GPS module and external GPS antenna

s100 navigation function

   Navigation

    * Free maps preload and free updates
    * Stunning 3D visualization
    * Text-to speech direction
    * Support Google maps, Waze, Sygic etc.

               s100 dvd player

   DVD

    * Support DVD/VCD/CD/MP3/MP4/WMA/
      CD-R/MPEG4/JPG format disc


radio with rds

   Radio

    * Built-in AM/FM tuner
    * Support RDS
    * Support DAB+(tuner is optional)
    * NOT support Sirius/XM radio

  apple carplay

   Apple CarPlay(optional)

   * Support Apple Carplay with iPhone

bluetooth phone call a2dp

   Bluetooth

    * Hands free phone call
    * Load phone book from you mobile phone
    * Bluetooth music stream A2DP
    * Internal Microphone
    * Compatible with iPhone & Android mobile phone
  mirror link

   Android Auto(optional)

    * Support Android Auto with android phone

backup camera parking radar

   Backup Camera(camera is optional)

    * Display reverse image automatically
      once put in the reverse
    * Sony CCD camera with night vision

  sd usb music   play

   SD/USB

    * SD card/USB music, video, photo and ebook
    * Charge phone via USB port


car digital tv receiver

   TV(TV tuner is optional)

    * Support ATSC/DVB-T/DVB-T2/ISDB-T

  dvr   for s100 navigation radio

   Front In-Dash camera(camera is optional)

    * support forward video recoder while driving
    * Operate via touchscreen
    * Plug & Play


steering wheel control

   SWC

    * Compatible with original steering wheel control

  aux port

   AUX

    * One channel A/V input for external device
    * One channel A/V output for rear headrest
      monitor/roof monitor/amp

 google play

   Google Play

    * Android Market provide numerous apps download,
      such as Skype/MSN/Youtube/Twitter/Facebook
      free download as much as you need
  network for s100 navigation radio

   Network

    * Wi-Fi


Android 8.0 OS Navigation Radio Player For mercedes benz
