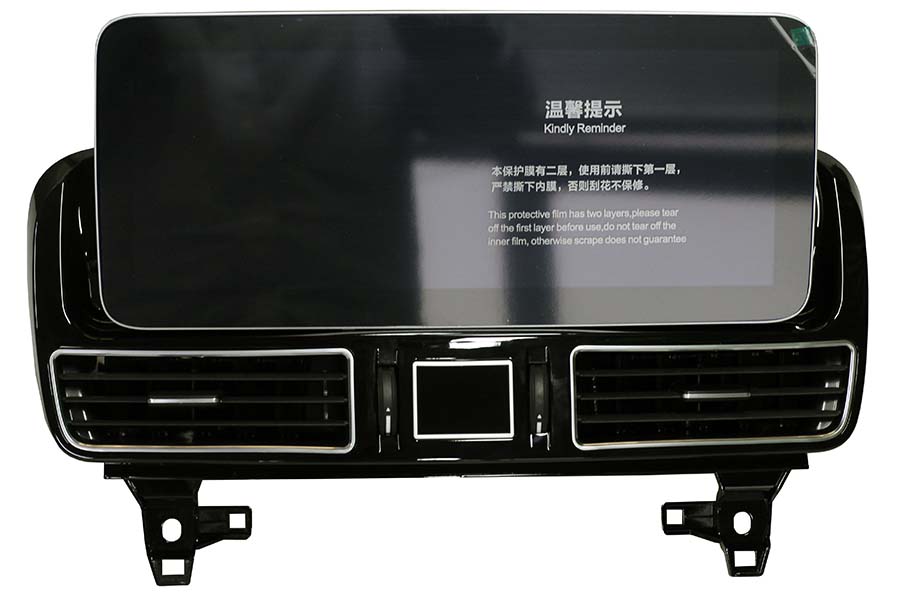

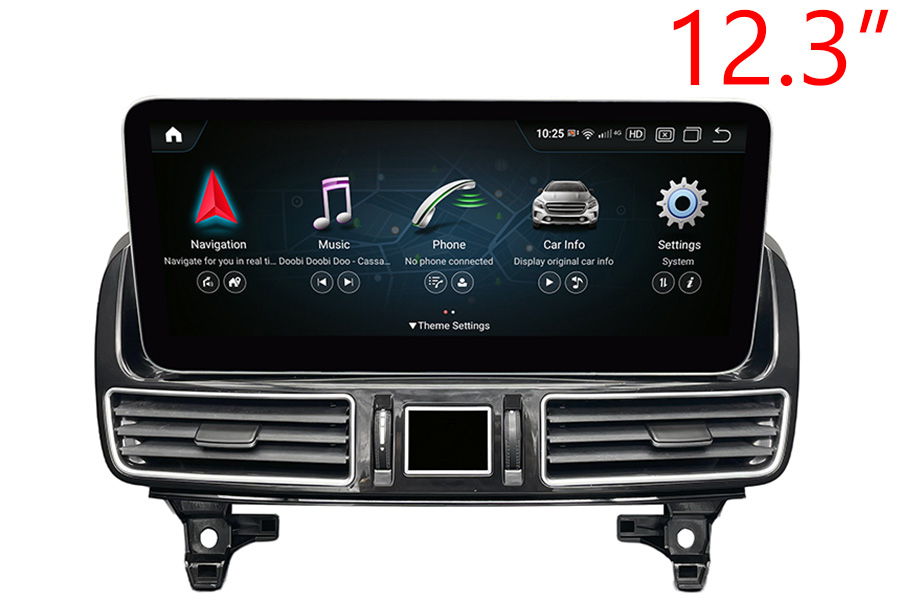

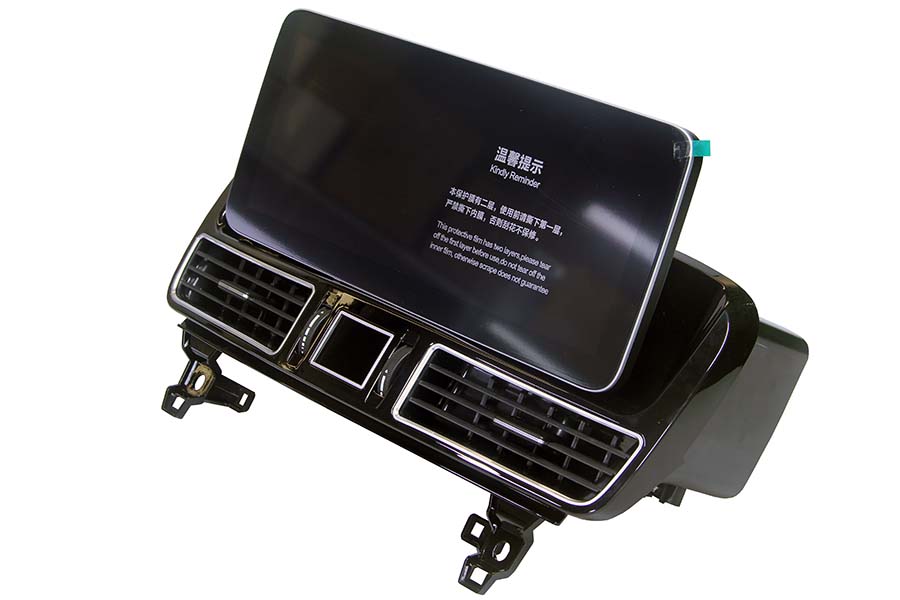

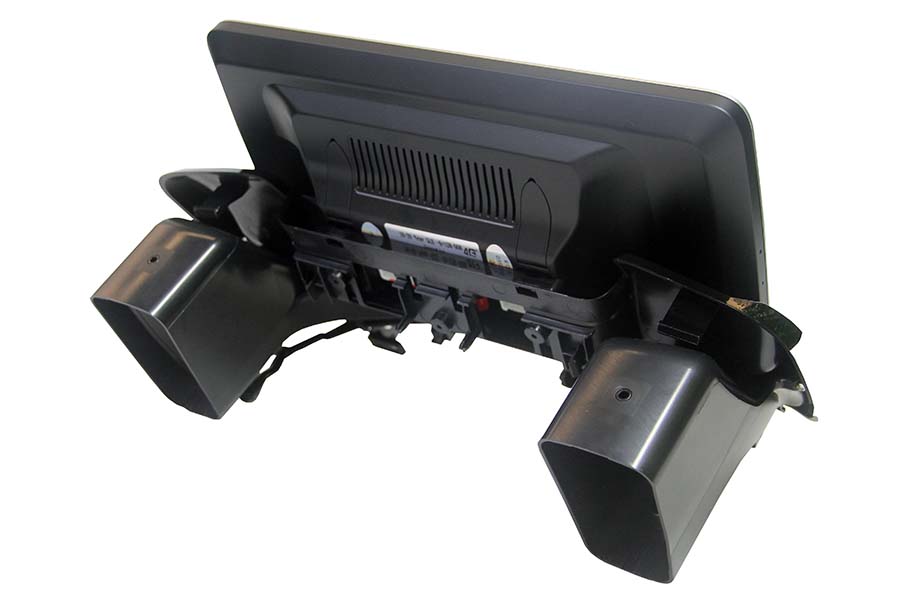

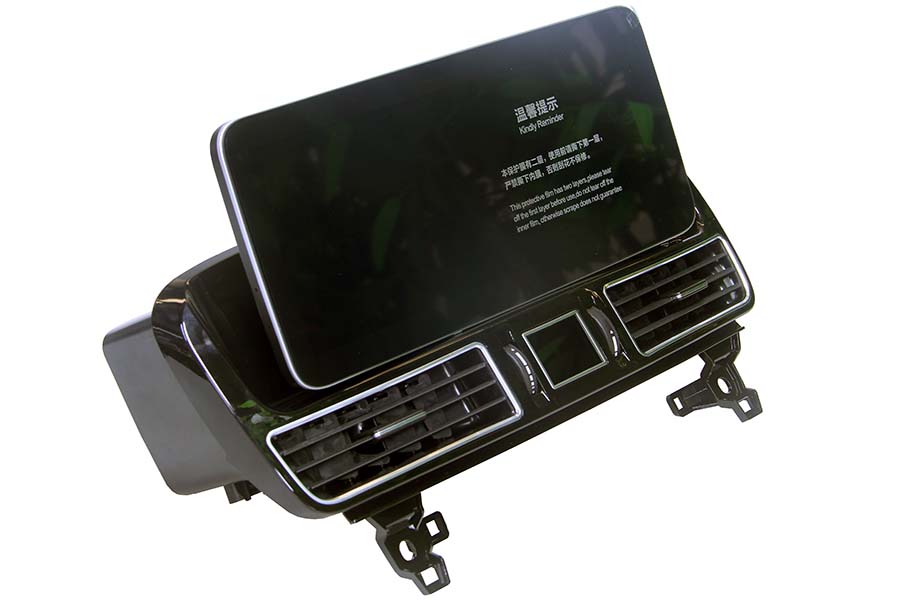

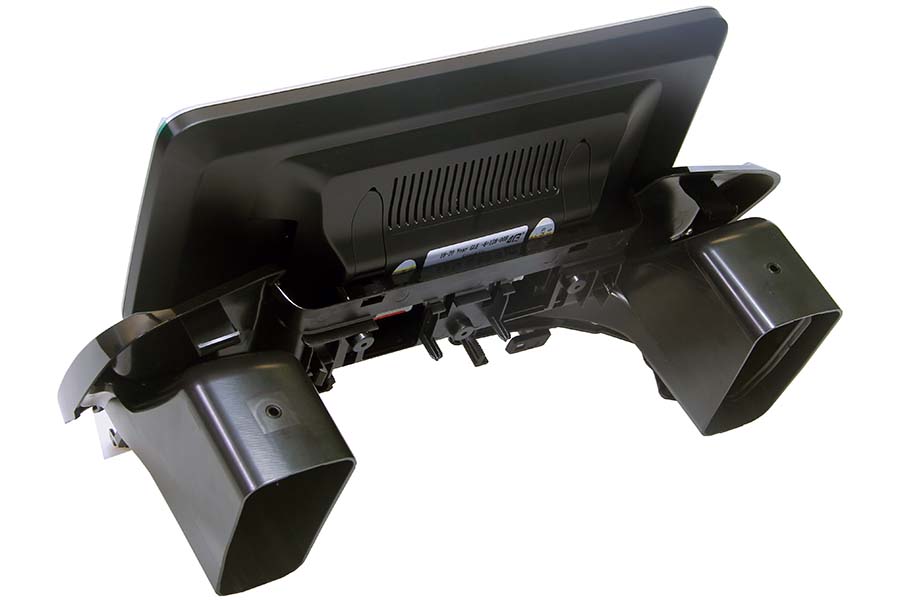

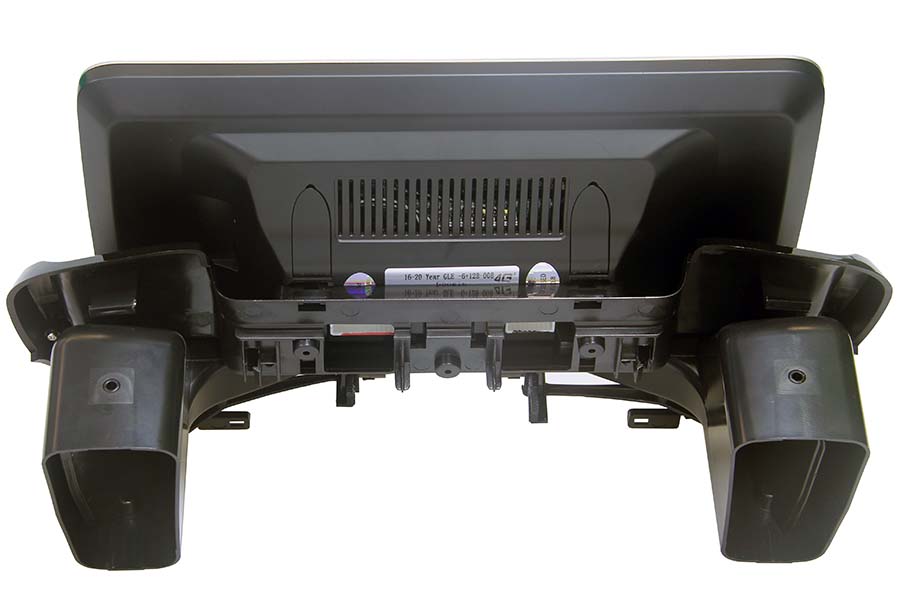

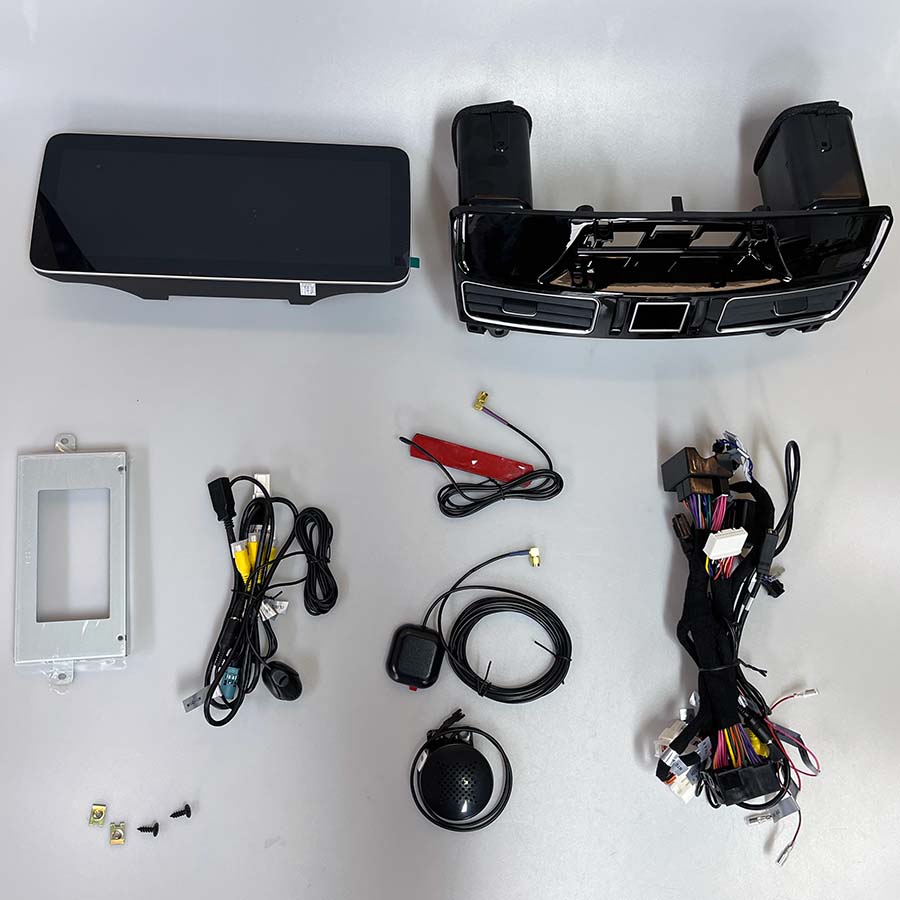

Introducing our latest aftermarket GPS navigation head unit, designed specifically to replace the factory LCD screen unit in the Mercedes-Benz GLE(W166)/GLS(X166). With the same plug-and-play connector and wiring harness as the original radio, installation is quick and easy. This product replaces only the original Mercedes-Benz GLE(W166)/GLS(X166) LCD screen unit while retaining the original factory FM/CD unit, so the factory Mercedes-Benz computer/CD/FM/AM/Sirius/XM will continue to function normally.

With the same wiring and connector as the original radio, installation is as simple as plug-and-play. Once installed, you'll have a smart entertainment system with touch screen/navigation/FM/AM/USB/Wi-Fi/AUX-IN/Bluetooth phone/Bluetooth music/DAB+ (tuner optional)/rearview camera (camera optional)/Apple CarPlay/Android Auto/TV (tuner optional)/OBD (device optional)/Google Play, and more.

Upgrade your Mercedes-Benz with our GPS navigation head unit and enjoy a new level of entertainment and convenience while driving. Don't miss out on this opportunity to transform your driving experience.

Compatible vehicles:

Mercedes-Benz GLE-Class (W166) 2013, 2014, 2015
Mercedes-Benz GLS-Class (X166) 2011, 2012, 2013, 2014, 2015

Attention: Please send the VIN and a photo of the radio dashboard to info@carnaviplayer.com. We will help you verify your fitness if you are unsure about it.

User manual:https://www.carnaviplayer.com/docs/user_manual/FY/User_Manual.pdf
Installation manual:https://www.carnaviplayer.com/docs/Installation_instructions/4315.pdf
Installation video: https://youtu.be/5E1JHgkcbCM

1. Is this product plug-and-play? Do I need to program or code my Mercedes-Benz? Do I need to buy the external GPS antenna? Can I still check the original car information on the OEM screen?
   Answer: Yes, it is plug-and-play. It has the same plugs and harness as the original Mercedes-Benz radio. No need to cut wires when installed. You do not need to program/code your car. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original Mercedes-Benz car information as before.

   ---

2. Can I operate the original Mercedes-Benz system through the new touchscreen?
   Answer: NO. As before, you can only operate the original Mercedes-Benz NTG system through the command knob.

   ---

3. Can I operate the new radio upgrade system interface through the command knob?

   Answer: Yes. You can operate the new upgrade system through the command knob and touchscreen. Operation video: https://www.youtube.com/watch?v=-IMVPGoCDU4

   ---

4. How do I switch between the new upgrade system and the original Mercedes-Benz system?
   Answer: There are two methods to switch between the new upgrade system and the original Mercedes-Benz system
   Method 1: Please press the "BACK" or "C" or "CLR" command button for 3 seconds to switch between the original Mercedes-Benz NTG system and the new upgrade system.
   Method 2: Click the "NTG-Menu" icon on the upgrade system's home menu to access the original Mercedes-Benz NTG system. Touch the screen to access the new upgrade system when it is on the original Mercedes-Benz NTG system.


   ---

5. Why does it show "No signal" or a blank screen when switching to the original Mercedes-Benz interface?
   Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the original Mercedes-Benz screen, not the one behind the actual head unit) to the "LVDS" port on the new screen.

   ---

6. Why does the original Mercedes-Benz screen not display correctly?
   Answer: Please check Settings/Factory/input password 190627/Car Display, then select the correct resolution settings to match your car. For example, if the original screen on your vehicle is small, please select 400*240. If the initial screen is big, please choose 800*480.

   ---

7. Why is there no audio from the new upgrade system?
   Answer:
   1. Please check if your car has an AUX IN or AMI port. Usually, it is in the center armrest box or glove box on the passenger side.

   2. If there is AUX IN port(NTG 4.0/4.5/4.7) on your car, please activate AUX mode, then switch to the upgrade system to get sound.
   If your car has an AMI port(NTG 4.0/4.5/4.7), you need to plug our AMI-AUX cord into the AMI port. Then you will see the AUX audio option, activate AUX mode, then switch to the upgrade system to get sound.


   ---

8. Why does the Sirius/XM radio, CD, original car computer inf,o, and factory camera not display? Also, why can I not see the AMI or AUX IN audio option on the screen even though the AMI-AUX cable is already plugged into the AMI port?
   Answer: Please check the fiber optics plug. You need to move it from the original connector to the new connector we provided.
