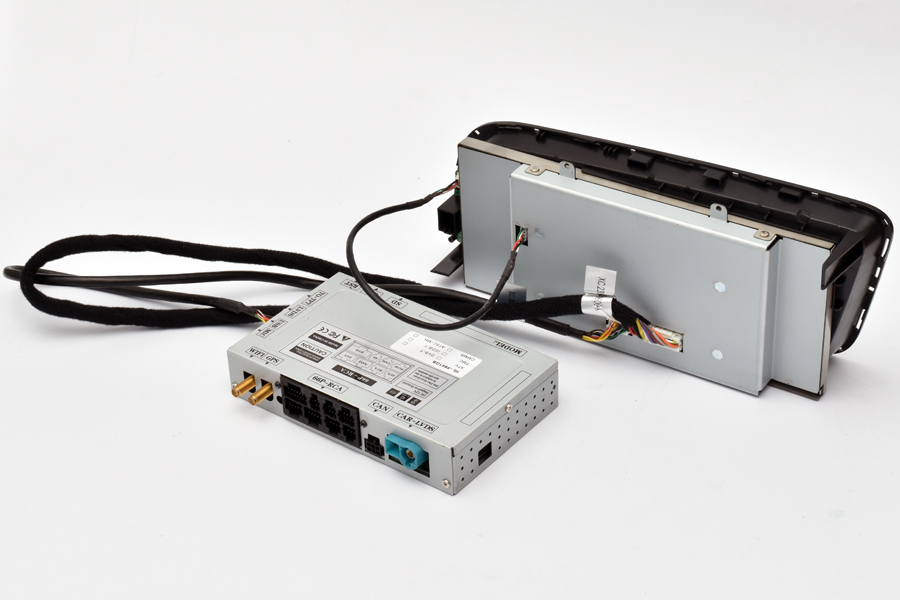

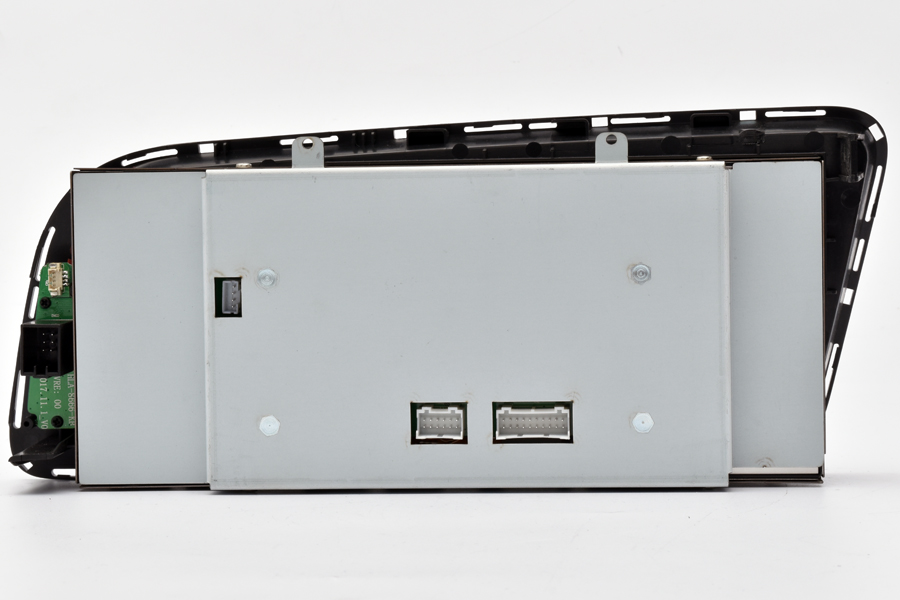

Introducing our latest aftermarket GPS navigation head unit, designed specifically to replace the factory LCD screen unit in the Audi Q5(8R) LHD from 2008-2017. With the same plug-and-play connector and wiring harness as the original radio, installation is quick and easy. This product replaces only the original Audi Q5(8R) LHD LCD screen unit while retaining the original factory FM/CD unit, so the factory Audi computer/CD/FM/AM/Sirius/XM will continue to function normally.

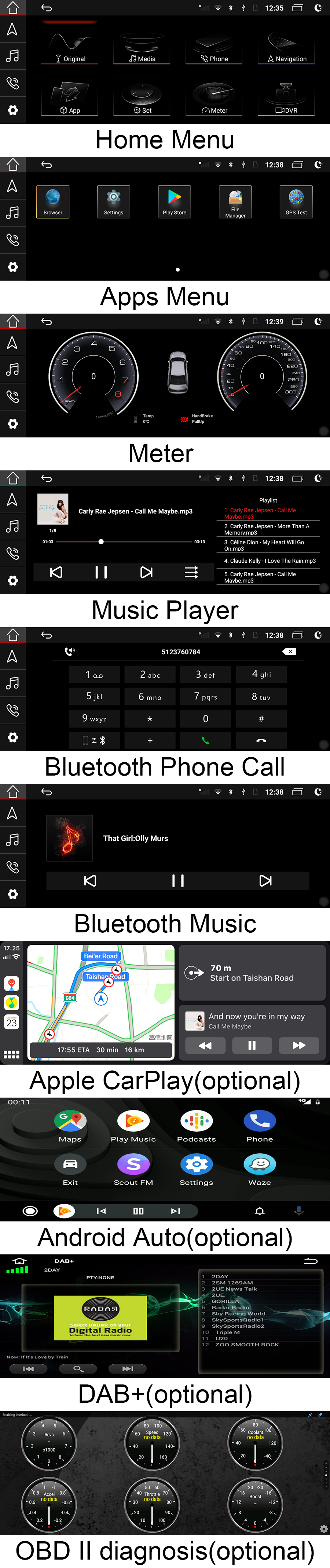

With the same wiring and connector as the original radio, installation is as simple as plug-and-play. Once installed, you'll have a smart entertainment system with touch screen/navigation/FM/AM/USB/Wi-Fi/AUX-IN/Bluetooth phone/Bluetooth music/DAB+ (tuner optional)/rearview camera (camera optional)/Apple CarPlay/Android Auto/TV (tuner optional)/OBD (device optional)/Google Play, and more.

Upgrade your Audi Q5(8R) with our GPS navigation head unit and enjoy a new level of entertainment and convenience while driving. Don't miss out on this opportunity to transform your driving experience.

Compatible Vehicles:

Audi Q5 (Type 8R: 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017)

Send a photo of the dashboard(radio system) to info@carnaviplayer.com if you do not know about your car, and we will help you to verify your fitness.

Before placing the order, you need to know the following items about your car:
1. What is the current radio system on my car?

2 . Please press the MEDIA button on the radio panel and check the audio source options as shown below.
If your car has the AUX(External audio input), then you don't need the AMI-AUX cord.
If your car has the AMI, then you need the Audi AMI-AUX adapter cord. Please add it from the add-ons box when placing the order. Otherwise there will be no audio after installing our product.

3. If your car has the MMI system with a joystick, then you can use the original joystick and touchscreen to operate the upgrade system. You can still use the original joystick to operate the original Audi radio system, but the touchscreen does not operate the original Audi radio system.

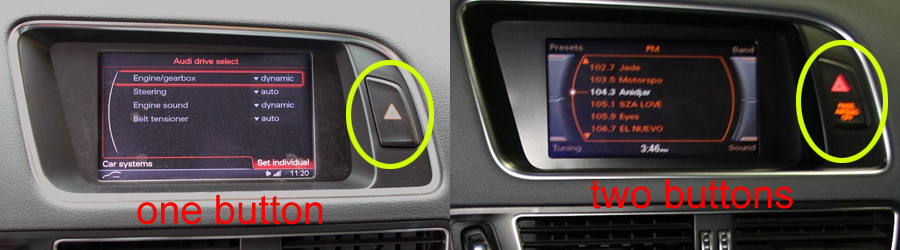

4. The fascia of the radio upgrade system has only one hazard warning lamp button. So if there is only a hazard warning lamp button on the factory radio fascia, then it is plug-and-play.

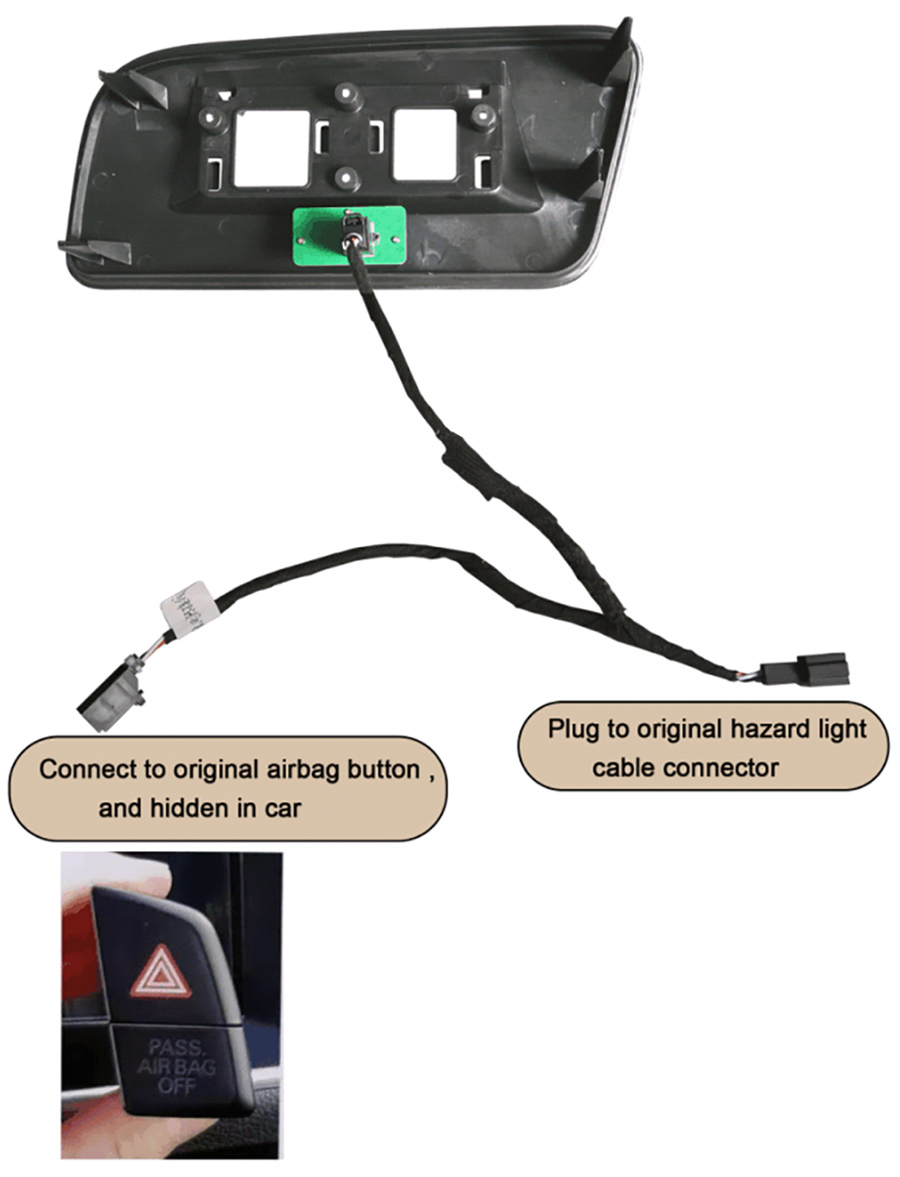

But if the factory radio fascia has two buttons(hazard warning lamp button and airbag button) as shown in the right picture below. We will include an adapter harness to remain the airbag button, but you need to hide it in the car and may not see it.

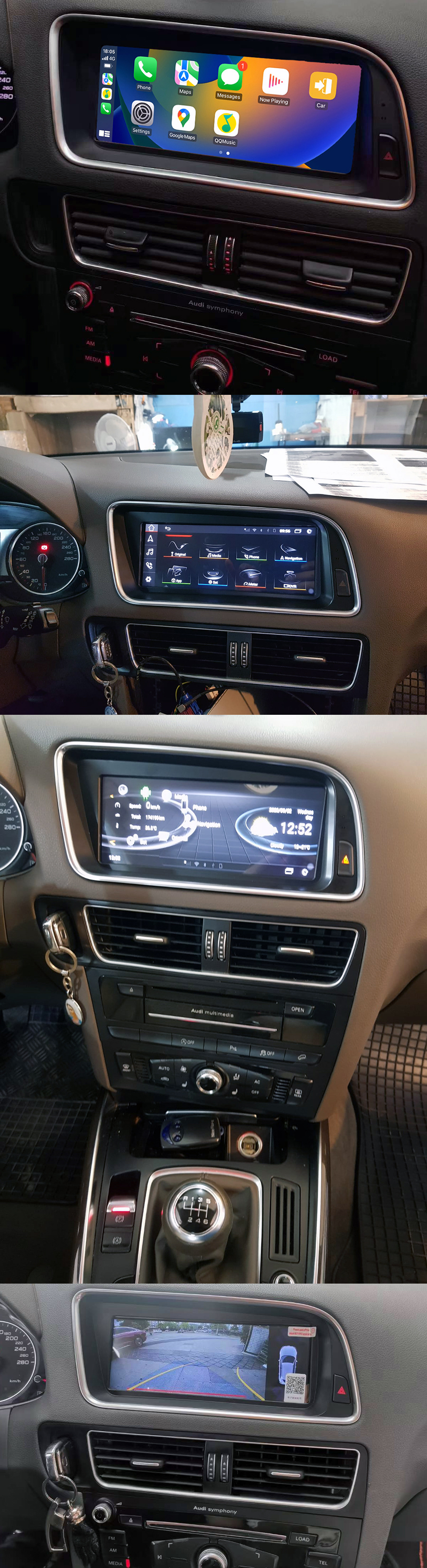

Installation Photo

CPU		64-Bit 8-Core 2.0GHz
RAM		4GB
Capacity		64GB

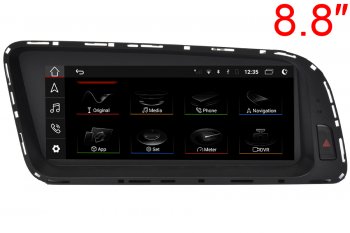

Display		8.8" Capacitive Touch Screen
Network		Wi-Fi
SD card		One micro sd card slot
USB port		Three USB ports
Camera Input		One camera input(RCA port)
Microphone		External
GPS receiver		Built-in GPS module and external GPS antenna

---

	Navigation     * Free maps preload and free updates     * Stunning 3D visualization     * Text-to-speech direction     * Support Google Maps, Waze, Sygic, etc.			CD      * Remain the factory AUDI CD player
	Radio   * Remains original Audi AM/FM/Sirius/XM tuner   * Support DAB+ radio(tuner is optional)			Apple CarPlay     * Support Apple Carplay with iPhone
	Bluetooth     * Hands-free phone call     * Load the phone book from your mobile phone     * Bluetooth music stream A2DP     * External Microphone     * Compatible with iPhone & Android mobile phones			Android Auto     * Support Android Auto with Android phone
	Backup Camera (Camera is optional)     * Display reverse image automatically       once put in the reverse     * Sony CCD camera with night vision     * Remain the factory AUDI backup camera			SD/USB     * SD card/USB music, video, photo     * Charge phone via USB port
	TV(TV tuner is optional)     * Support ATSC     * Support DVB-T/DVB-T2     * Support ISDB-T			DVR(Camera is optional)     * support forward video recorder while driving     * Operate via touchscreen     * Plug & Play
	SWC     * Remain original steering wheel control			AUX     * One channel A/V input for external device
	Google Play     * Android Market provides numerous apps download,       such as Skype/MSN/Youtube/Twitter/Facebook       free download as much as you need			Network     * Wi-Fi/4G LTE

---

---

Product demo video: https://www.youtube.com/watch?v=M83AWZLVKwI
User Manual: http://www.carnaviplayer.com/docs/user_manual/Audi/User_Manual.pdf
Head unit Installation Guide: http://www.carnaviplayer.com/docs/Installation_instructions/8665.pdf
Connection map: http://www.carnaviplayer.com/docs/Installation_instructions/8665_connection_map.pdf
