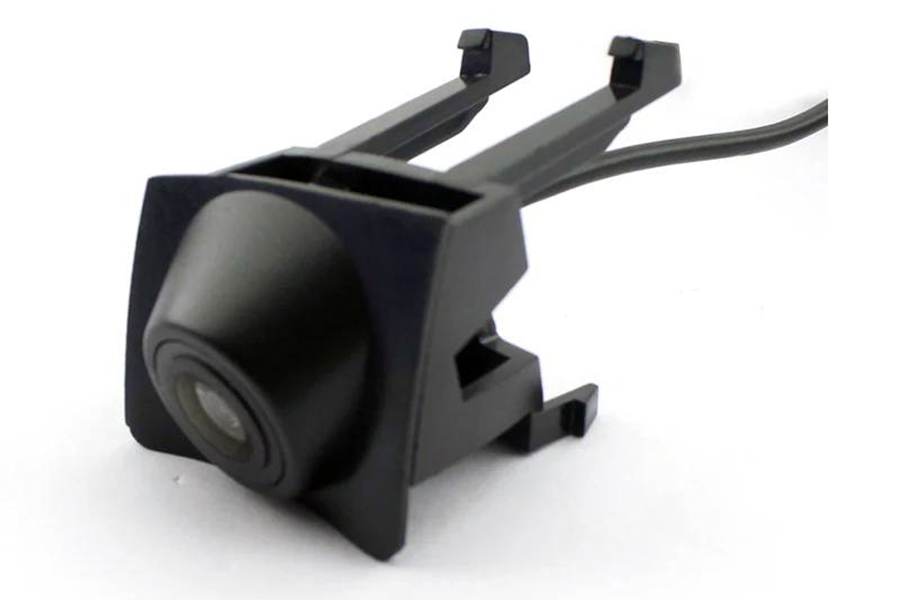

Front View Camera for BMW X5/X6(F15) 2015-2016
Type of connection: 6-meter RCA cable
Product Features
Image sensor: HD CCD
TV system: NTSC
Resolution: 900 lines
Lens angle: 170º
IP rating: IP67
Important notice
Compatible with aftermarket head units with RCA input for the front camera.
It is necessary to use a reverse camera interface to connect to the factory navigation system; a direct connection is not possible.
<table border="0">
<tbody>
<tr>
<td><strong>Image Sensors</strong></td>
<td>           <br /></td>
<td><span>SONY CCD lens</span></td>
</tr>
<tr>
<td><strong>IP rating</strong></td>
<td> </td>
<td>IP68</td>
</tr>
<tr>
<td><strong>TV System</strong></td>
<td> </td>
<td><span>PAL or NTSC</span></td>
</tr>
<tr>
<td><strong>Effective Pixels</strong></td>
<td> </td>
<td><span>628×582/628×492</span></td>
</tr>
<tr>
<td><strong>Sensing Area(mm)</strong></td>
<td> </td>
<td><span>4.9×3.7</span></td>
</tr>
<tr>
<td><strong>Resolution(TV Line)</strong></td>
<td> </td>
<td><span>480</span></td>
</tr>
<tr>
<td><strong>Horizontal Sync Frequency (KHZ)</strong></td>
<td> </td>
<td><span>15.625/15.734</span></td>
</tr>
<tr>
<td><strong>Vertical Sync Frequency (HZ)</strong></td>
<td> </td>
<td><span>50/60</span></td>
</tr>
<tr>
<td><strong>Video output</strong></td>
<td> </td>
<td><span>1Vp-p,75Ohm,RCA male</span></td>
</tr>
<tr>
<td><strong>Gamma Consumption</strong></td>
<td> </td>
<td>0.45</td>
</tr>
<tr>
<td><strong>AGC</strong></td>
<td> </td>
<td><span>Auto</span></td>
</tr>
<tr>
<td><strong>BLC</strong></td>
<td> </td>
<td><span>Auto</span></td>
</tr>
<tr>
<td><strong>S/N Ratio</strong></td>
<td> </td>
<td><span>Betterthan 48dB</span></td>
</tr>
<tr>
<td><strong>Lens Angle (Deg.)</strong></td>
<td> </td>
<td><span>170°diagonal</span></td>
</tr>
<tr>
<td><strong>Current Consumption (mA)</strong></td>
<td> </td>
<td>200</td>
</tr>
<tr>
<td><strong>Power Supply (DCV)</strong></td>
<td> </td>
<td>12V</td>
</tr>
<tr>
<td><strong>Operating Temperature (Deg.C)</strong></td>
<td> </td>
<td><span>-20~+70(RH95%MAX.)</span></td>
</tr>
<tr>
<td><strong>Storage Temperature (Deg.C)</strong></td>
<td> </td>
<td><span>-40~+80(RH95%MAX.)</span></td>
</tr>
<tr>
<td><strong>Size</strong></td>
<td> </td>
<td><span>Same as the number plate lampshade of the original car</span></td>
</tr>
<tr>
<td><strong>LED lamp</strong></td>
<td> </td>
<td>Inside the camera if camera has built-in LED light</td>
</tr>
<tr>
<td><strong>Current Consumption (mA)</strong></td>
<td> </td>
<td>30~60mA</td>
</tr>
</tbody>
</table>
